Products South Total Stations Total Station N7/N9 Series

Total Station N7/N9 Series

0.0/5 rating (0 votes)

Description

1. Angle measurement accuracy improve

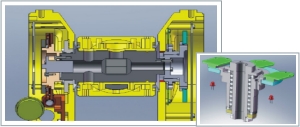

● Vertical angle: integrated unitary axis, less components. Less offset tolerance.
● Angle reading: 4 detector technology, reduce disk offset angle and rit tolerance.




2. Distance measurement accuracy improve

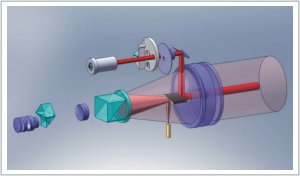

● Optical path change: totally new 5 axis design, fully isolation emitting and reflect signal. Reduce optical Crosstalk.
● Circuit design change: 150MHZ ultra high measure frequency, improve measure tape accuracy, Development by self. Improve SNR (Signal noise rate)




3. Geometry accuracy improve

● Clear telescope and high accuracy tribrach system, make sure pointing accuracy.



4. Compensator accuracy improve

● Micro survey tile tolerance by CCD image to compensate.



5. UE (User experience) improvement

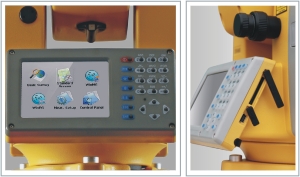

● 640*480 high resolution.3.5 inch display unit. Easy to read under sunshine.
● WIN CE 6.0 OS, blue tooth standard, WIFI optional.
● Ultra measure speed.  Fine0.3S,  track 0.1s.
● A variety of data transfer options for diverse needs, eg. SD card, mini USB interface.
