GrAnt
Description
GrAnt is a versatile high performance antenna. It can be mounted on flat surfaces with four screws or mounted on standard poles (5/8-11 or 1-14 inches thread). The antenna cable can be connected via the standard TNC (N-type optional) connector on its side or routed through the center of the antenna for ultimate protection in harsh environments.
GrAnt, as all of our other antennas in this page, can track GPS, GLONASS, GALILEO, COMPASS, WAAS, EGNOS, MSAS, GAGAN, QZSS signals.
GrAnt Specifications
| G3 | G3T | |
Signal |
||
| Capability | GPS L1 GLONASS L1 GALILEO E1 COMPASS B1 WAAS L1, EGNOS, MSAS, GAGAN QZSS L1 |
GPS L1/L2/L5 GLONASS L1/L2/L3 GALILEO E1/E5ab COMPASS B1/B2 WAAS L1/L5, EGNOS, MSAS, GAGAN QZSS L1/L2/L5 |
| Frequency | 1559~1610 MHz | 1559~1610 MHz 1164~1253 MHz |
Electrical |
||
| Antenna Gain | 1559~1610 MHz - 5.0 dB typ. | 1559~1610 MHz - 5.0 dB typ. 1164~1253 MHz - 4.0 dB typ. |
| Axial Ratio | 3.0 dB max. | |
| Output Impedance | 50 Ohm | |
| LNA gain | 32±2 dB | |
| Noise Figure | 1559~1610 MHz - 1.7 dB typ. | 1559~1610 MHz - 1.7 dB typ. 1164~1253 MHz - 1.7 dB typ. |
| DC voltage | 3.0~15.0VDC 25mA@5.0V typ. | 3.0~15.0VDC 45mA@5.0V typ. |
Environmental |
||
| Operating Temperature | -45°C ~ +85°C | |
| Storage Temperature | -50°C ~ +85°C | |
| Humidity | Waterproof | |
Mechanical |
||
| Antenna type | Microstrip | |
| Connector | TNC | |
| Weight | 450 g | 515 g |

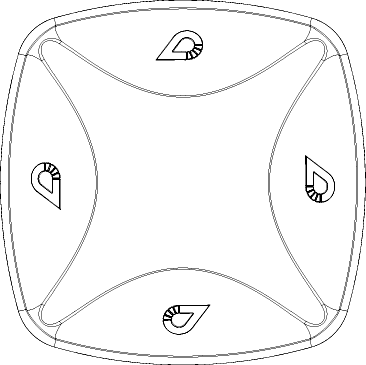

| Dimensions | 140 mm x 140 mm x 62 mm | |
| Enclosure | Radome: ABS Base: Aluminum |
|
| Color | Green | |
| Mounting | 5/8-11 or 1-14 inches mount, or 4 holes M5 | |
